For sale here we have the above…
1 Piece

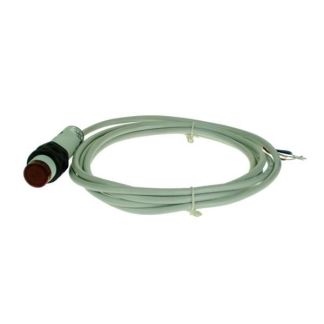

FARL/BN-0A Photoelectric sensor Axial Retroreflective for transparent objects 1 m adj. NPN NO+NC plast. cable 2m axial II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C
Technical features
Nominal sensing distance | 0,1…1,5m with RL113G or RL116 reflector | |
Thermal drift of Sr | ≤10% Sr | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | Trimmer |
Application
Function Principle | Transparent object | |
Optic position | Axial |
Outputs
Output type | NPN | |
Output Function | NO+NC | |
Switching frequency | 250Hz |
Electrical data
Operating Voltage | 10-30Vdc | |
No-Load supply current | ≤30mA | |
Load current | ≤100mA | |
Leakage current | ≤10μA | |
Output voltage drop | 2V max. IL =100 mA | |
Max ripple content | 10% | |
LED indicators | Yellow (output state) | |
Time delay before availability | ≤200ms | |
Short-circuit protection | Short circuit (autoreset), Overvoltage | |
Reverse Polarity Protection | Polarity inversal, Inpulsive voltage | |
Emission | Red (660 nm) | |
Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
Mechanical data
Dimensions | M18 x 1/L=67,5mm | |
Weight | 50g | |
Housing Material | PBT | |
Connections | 2m PVC cable | |
Active Head Material | PC | |
Tightening torque | 1Nm | |
Operating temperature | – 25°C…+ 70° C (Without freeze) |
Test/Approvals
Approvals | CE, cULus | |
EMC compatibility | EN 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
Degree of protection | IP67 |
Accessories
Supplied Accessories | nuts M18 x 2 |
Made in Italy for IMO precision controls.
For generic datasheet search…FARL/BN-0A
Or go directly to…
https://www.electricautomationnetwork.com/en/micro-detectors/farl-bn-0a-micro-detectors-photoelectric-sensor-axial-retroreflective-for-transparent-objects-1-m-adjustmen
PLEASE NOTE!
These parts came to us as part of a lot of surplus stock from a large production control equipment distributor. They are new and unused but have been in storage for some time we have therefore classified them as new other, they are however pristine, stored with us sealed in original packaging, the photographs are representative of their general appearance, being of one of our actual stock, and, as with all our products they come with a full guarantee.
