Description
WE ARE RICH ELECTRONICS
WE PURCHASE SURPLUS
ELECTRONIC COMPONENTS
AND EQUIPMENT!
For sale here we have the above…
1 Piece
Three-Terminal Negative Voltage Regulators
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven–voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. Available in fixed output voltage options from – 5.0 V to – 24 V, these regulators employ current limiting, thermal shutdown, and safe–area compensation – making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe–Area Compensation
Product specifications
| MC7912 | ||
| Through Hole | ||

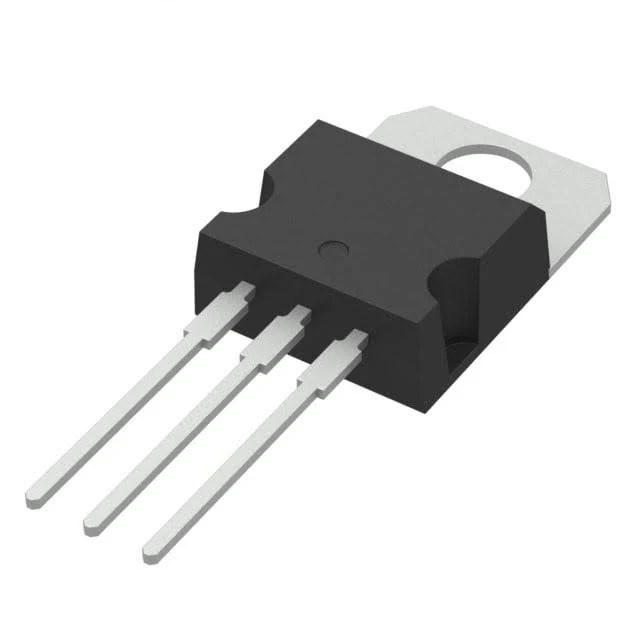

| TO-220-3 | ||
| 1 Output | ||
| Negative | ||
| – 12 V | ||
| 1 A | ||
| Fixed | ||
| 0 C | ||
| + 125 C | ||
| 4.4 mA | ||
| Tube | ||
| Brand: | onsemi | |
| Line Regulation: | 240 mV | |
| Load Regulation: | 240 mV | |
| Product Type: | Linear Voltage Regulators | |
| PSRR / Ripple Rejection – Typ: | 61 dB |
For datasheet search…Motorola MC7912CT
Or go directly to…
https://www.onsemi.com/pdf/datasheet/mc7900-d.pdf
PLEASE NOTE!
These genuine STM parts came to us as part of a lot of surplus stock from a large Milspec type Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’. They are however pristine, and, as with all our products they come with a full guarantee.
If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
