ON MBR0540T1G Schottky Power Rectifier SOD−123 25 Pieces OT0087Z7

Description

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

10 Pieces

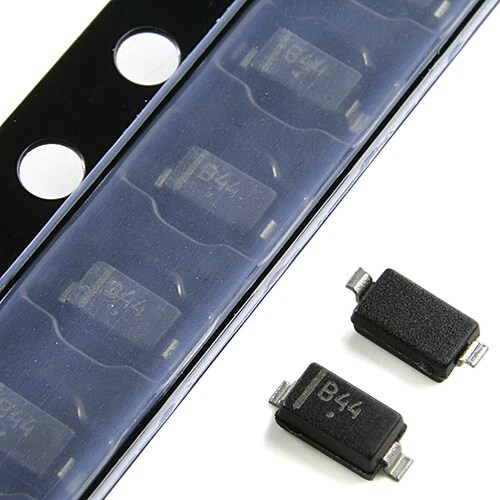

Taped and reeled, you will receive the quantity ordered cut from the reel still taped.

General Description

The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as a free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.

Features

• Guardring for Stress Protection

• Very Low Forward Voltage

• Epoxy Meets UL 94 V−0 @ 0.125 in

• Package Designed for Optimal Automated Board Assembly

• AEC−Q101 Qualified and PPAP Capable

• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

• All Packages are Pb−Free*

Mechanical Characteristics

• Device Marking: B4

• Polarity Designator: Cathode Band

• Weight: 11.7 mg (approximately)

• Case: Epoxy Molded

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C max. for 10 Seconds

• ESD Rating:

♦ Human Body Model = 3B

♦ Machine Model = C

For datasheet search…ON MBR0540T1G

Or go directly to…

https://www.onsemi.com/pdf/datasheet/mbr0540t1-d.pdf

PLEASE NOTE!

These parts came to us as part of a lot of surplus stock from a large manufacturing Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’, they are however pristine, and, as with all our products they come with a full guarantee.
