ON Semiconductor MC14514BCP Latch Decoder Multiplexer 24 PDIP OMA0047F

£14.00

1 in stock

SKU: OMA047F Categories: ,

Description

WE ARE RICH ELECTRONICS

PURCHASERS AND RECYCLERS

OF SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above part…

1 Piece

On Semiconductor MC14514BCP 4-Bit Transparent Latch/4-to-16 Line Decoder
24 Pin PDIP Package
Genuine On Semi parts new and tubed but old stock, date coded 0323

ON Semiconductor
Product Category:  Encoders, Decoders, Multiplexers & Demultiplexers
Product:  Decoders, Encoders, Multiplexers & Demultiplexers
Logic Family:  MC145
Number of Bits:  4 bit
Number of Input Lines:  4 Input
Number of Output Lines:  16 Output
Supply Voltage – Min:  3 V
Supply Voltage – Max:  18 V
Minimum Operating Temperature:  – 55 C
Maximum Operating Temperature:  + 125 C
Mounting Style:  Through Hole
Package/Case:  PDIP-24
Packaging:  Tube
Function:  Latch/Decoder/Demultiplexer
Height:  4.06 mm
Length:  32.13 mm
Number of Circuits:  Dual
Technology:  CMOS
Width:  14.22 mm
Supply Current – Max:  0.02 mA
High Level Output Current:  – 1.8 mA
Low Level Output Current:  4.2 mA
Operating Supply Voltage:  3 V to 18 V
Product Type:  Encoders, Decoders, Multiplexers & Demultiplexers
Unit Weight:  3.740 g

For datasheet search…ON Semiconductor MC14514BCP

Or go directly to…

http://pdf.datasheetcatalog.com/datasheet2/a/0sylg3kd71ldee09tw6908ryey7y.pdf

PLEASE NOTE!

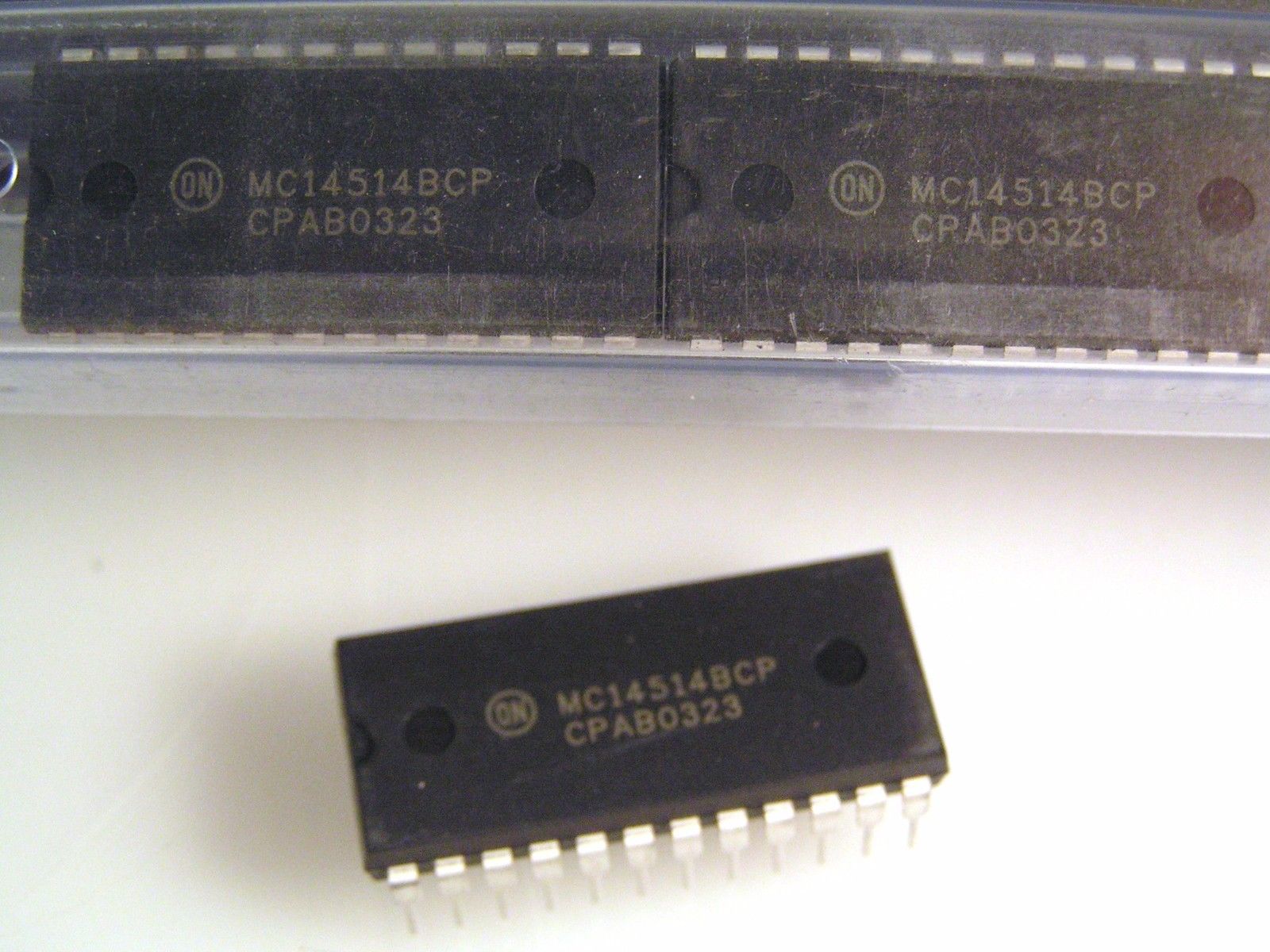

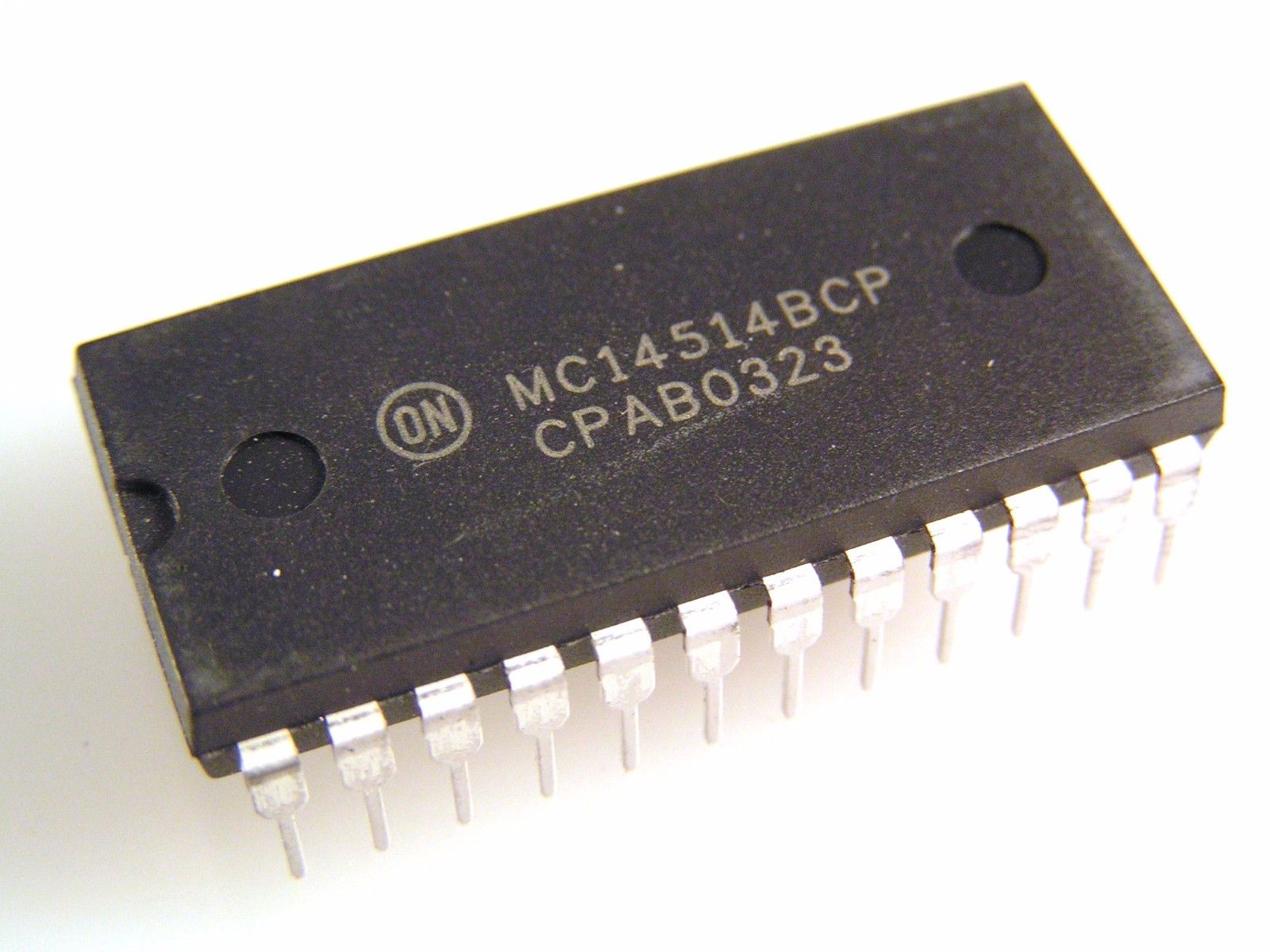

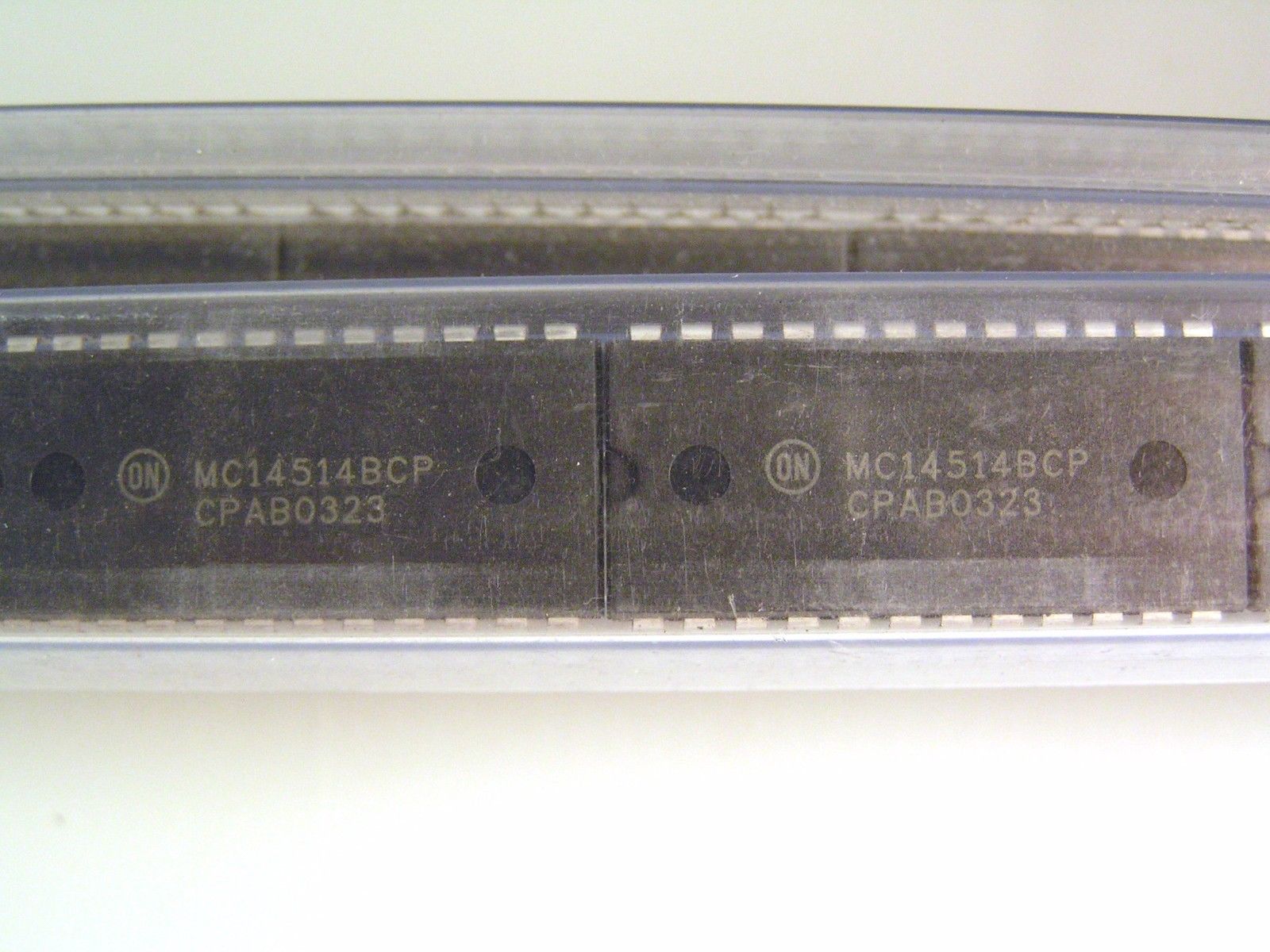

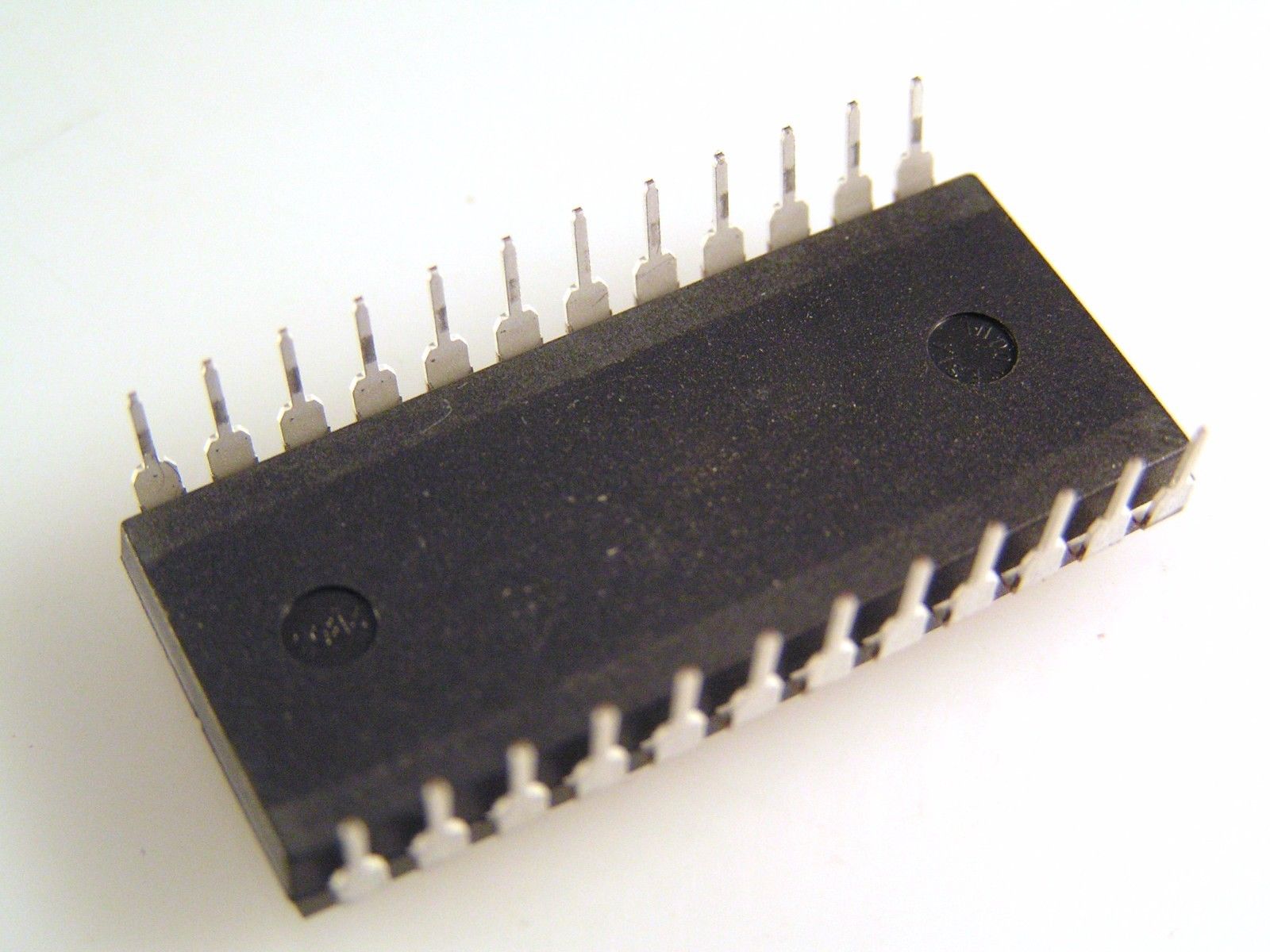

These parts came to us as part of a lot of surplus stock from a large ‘Milspec’ type Company and have been kept in storage for some time, they are however pristine, stored with us sealed in original packaging and in good serviceable condition, the photographs are representative of their general appearance, being of some of our actual stock, and, as with all our products they come with a full guarantee.

If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
