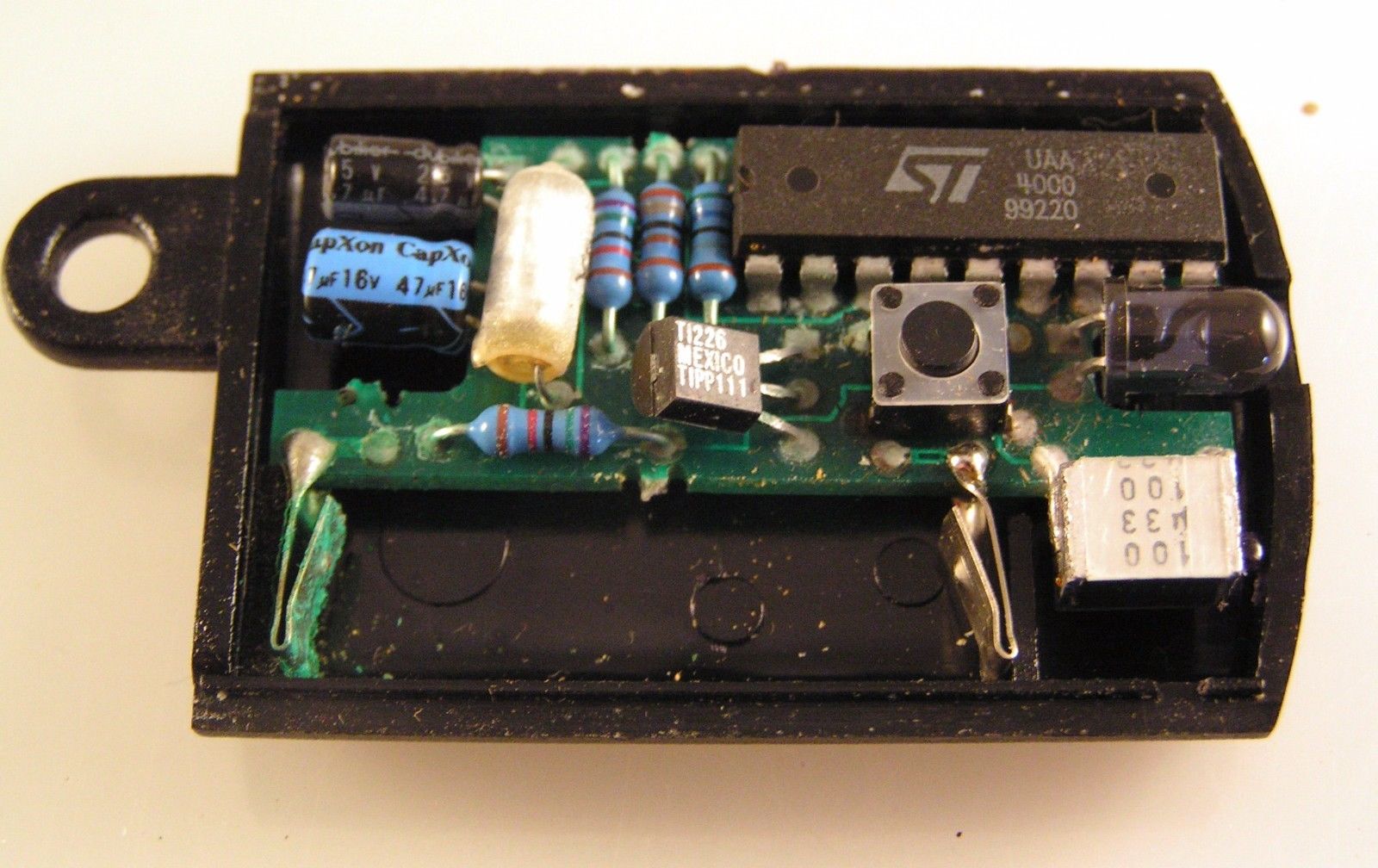

Key Fob Controller Switch PCB Containing S.T. UAA4000
SGS Thompson Ultrasonic or Infrared remote control transmitter chip
Exact Equivalent to Plessey SL490, SL490B remote control encoder
A little De soldering will be necessary to retrieve the chip! Also on the PCB a small transistor, capacitors, resistors and a tactile switch
Originally made to control a household alarm system these PCB’s are populated by various components.
S.T. Microelectronics UAA4000 DIP-18 ST Ultrasonic or Infrared remote control transmitter
DESCRIPTION
The UAA4000 is an easily expandable, 32 command, pulse position modulation transmitter drawing zero standby current.
DIP 18 Leads
Row Spacing 7.62 mm
Pitch 2.54 mm
ULTRASONIC OR INFRA-RED TRANSMISSION
. DIRECT DRIVE FOR ULTRASONIC TRANSDUCER
. DIRECT DRIVE OF VISIBLE LED WHEN USING INFRA-RED
. VERY LOW POWER REQUIREMENTS
. PULSE POSITION MODULATION GIVES EXCELLENT IMMUNITY FROM NOISE AND
MULTIPATH REFLECTIONS
. SINGLE POLE KEY MATRIX
. SWITCH RESISTANCE UP TO 1kΩ TOLERATED
. FEW EXTERNAL COMPONENTS
. ANTI-BOUNCE CIRCUITRY ON CHIP
For UAA4000 Datasheet copy and paste :-
http://pdf1.alldatasheet.com/datasheet-pdf/view/137371/STMICROELECTRONICS/UAA4000.html
Also included on the internal PCB –
TIPP111 NPN SILICON POWER DARLINGTON Transistor
● 20 W Pulsed Power Dissipation
● 100 V Capability
● 2 A Continuous Collector Current
● 4 A Peak Collector Curren
For datasheet search… TIPP111
Various Capacitors and Resistors
1 off 6mm x 6mm tactile switch and 1 off Infra Red Transmitting LED
These parts came to us as part of a lot of surplus stock from a large OEM and have been kept in storage for some time, we have therefore classified them as ‘new other’. They are however in good serviceable condition, the photographs are representative of this, and, as with all our products they come with a full guarantee.
