For sale here we have the above…
1 Piece
Description
Trompeter TRB Bulkhead Cable Jack
BJ79-47 – RF / Coaxial Connector, Triaxial, Straight Bulkhead Jack, Crimp, 75 ohm, Beryllium Copper
BJ79-4770 series Concentric Twinax connectors to suit .250 dia twinax cable
Packed in sealed manufacturers bags with full assembly instructions
Product Overview
- Nickel-plated brass body
Applications
RF Communications
Product Information
| Trompeter | |
| Product Category: | RF Connectors / Coaxial Connectors |
| RoHS: | Details |
| Connectors | |
| 70 Series | |
| Jack (Socket) | |
| Non-Constant | |
| 500 MHz | |
| Crimp | |
| Straight | |
| Standard | |
| Bulkhead | |
| M17/176-00002 | |
| – | |
| Bulk | |
| Body Finish: | Silver |
| Body Style: | Bulkhead |
| Brand: | Trompeter / Cinch Connectivity Solutions |
| Product Type: | RF Connectors / Coaxial Connectors |
| 1 | |
| Subcategory: | RF Interconnects |
| Unit Weight: | 27 g |
- : 75ohm
Series • TRB
Impedance • Twinax/Triax
Termination Style • Cable
Termination Type • Wrench Crimp
Body Style • Straight
Mounting Style • Bulkhead Mount
For schematic drawing and further info search…BJ79-47
Or go directly to…
https://www.belfuse.com/resources/drawings/cinchconnectivitysolutions/trompeter/dr-ccs-trom-bj79-47.pdf
PLEASE NOTE!

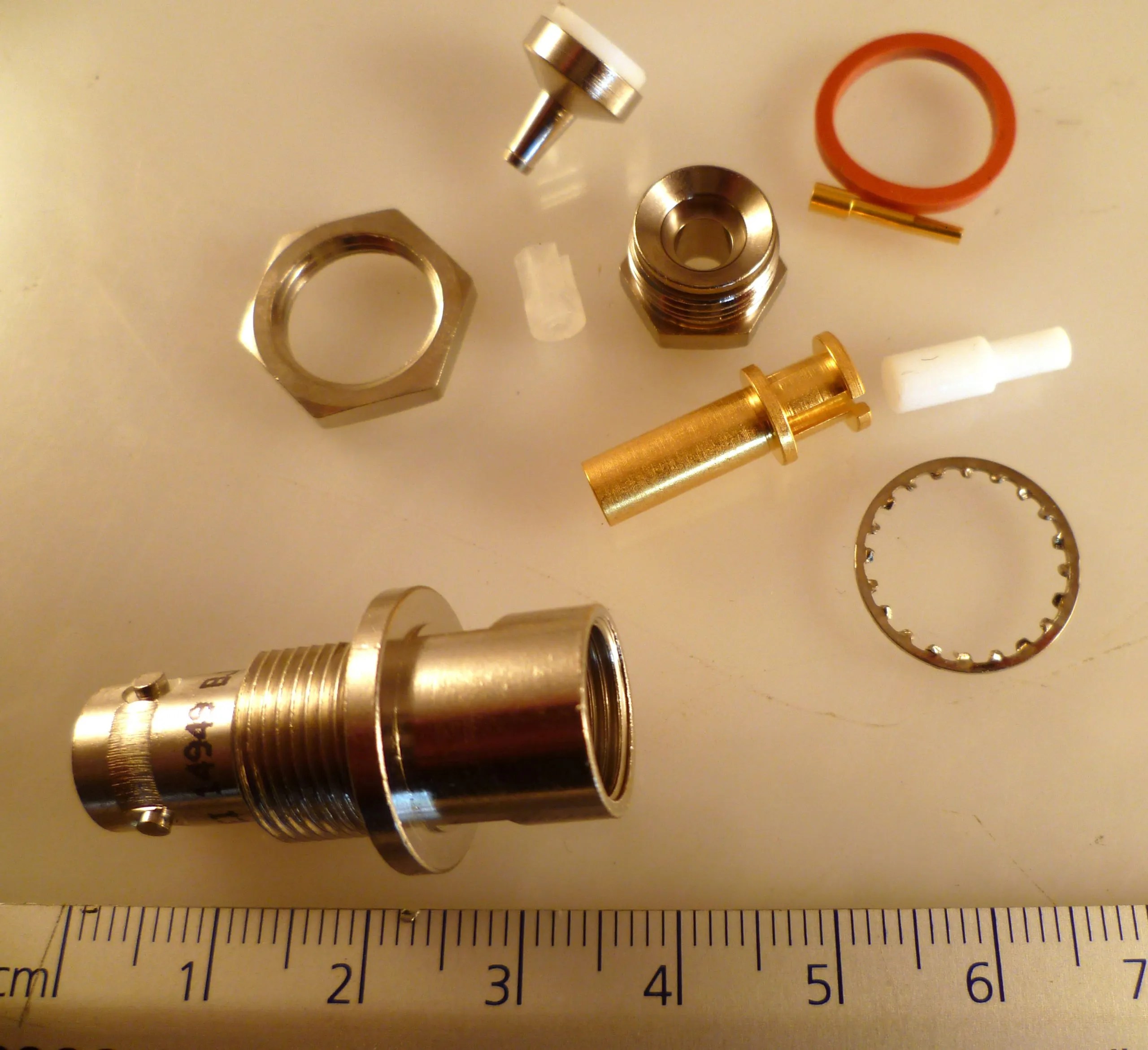

These Trompeter connectors are now obsolete (now made by Cinch), they came to us as part of a lot of surplus stock from a large ‘Milspec’ type Co. Having been in storage for some years (dated 0208) we have classified them as ‘new other’. However they are stored with us still in original sealed bags and pristine, the photographs above are representative of their general appearance, being of some of our actual stock, and, as with all our products they come with a full guarantee.
