For sale here we have the above…
1 Piece
Select from the drop down box the value required.

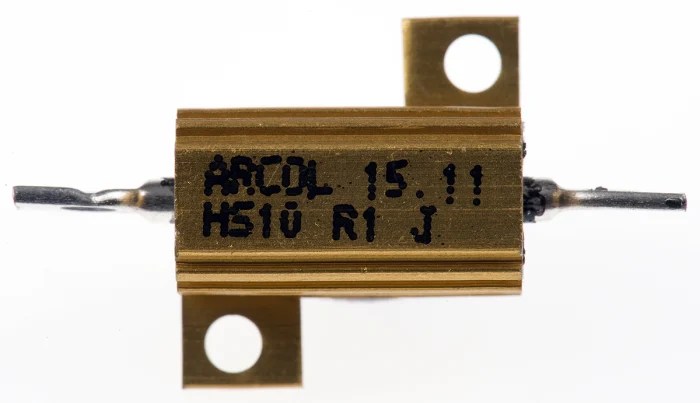

10W Aluminium Clad Resistors
Designed for applications requiring high power dissipation in a limited space.
VALUES AVAILABLE:
Ohms: 0.1R, 0.2, 1R, 2R2, 4R7, 5R0, 6R8, 10R, 12R, 15R, 22R, 47R, 100R, 220R
Please note the R is used in place of the decimal point – 10R = 10 Ohm, 2R2 = 2.2 Ohm etc.
These resistors can be mounted directly to a heatsink using thermal compound to achieve maximum performance.
Resistance tolerance 5%
Power rating @ 25°C 10W Max
AC working voltage 160V
High power to volume
Wound to maximise high pulse capacity
Temperature coefficient = 1k 100ppm/°C, >1k 25ppm/°C
Solder terminations
Wide range of resistances
Manufactured in line with the requirements of IEC 115 and MIL-18546
Please note:- Manufacturer may vary eg. Arcol, CGS, RS etc.
For datasheet search…Arcol HS range
Or go directly to…
https://symkrilag.uk/wp-content/uploads/2018/09/ARCOL-HS-SERIES.pdf
PLEASE NOTE!
These parts came to us as part of a lot of surplus stock from a large distribution Co. and have been kept in storage for a time, they are however pristine, stored with us still in their original packaging, the photographs are representative of their excellent condition, being of one of our actual stock, and, as with all our products they come with a full guarantee.
If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
