MES Flashing Bulbs 3.5 or 6VDC 200mA BiMetallic Strip OM0309

£6.00£20.00

SKU: OM0309 Category:

Description

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

Just choose the voltage and quantity required from the drop-down boxes.

2, 5 or 10 Pieces

The greater the quantity selected the more discount will apply.

Specifications
Attribute Value
Voltage Rating Select from drop down box
Lamp Base E10
Current Rating 200 mA
Diameter 9mm
Length 25 mm
Lens Colour Clear

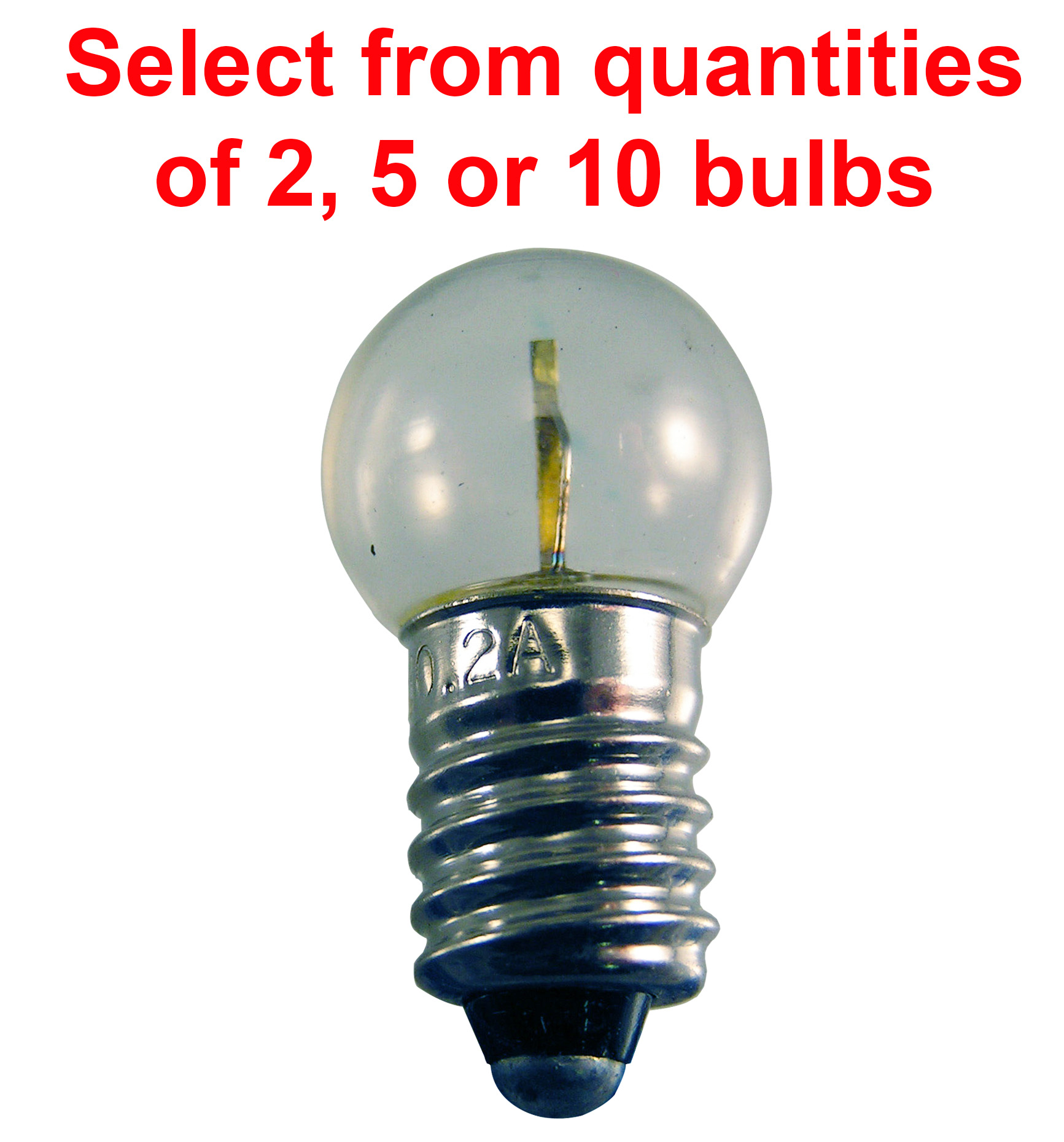

These are STANDARD FITTING MES low voltage bulbs which have an internal bi-metallic strip thermal switch, the bi-metallic strip causes the bulb to flash on and off once it has warmed up after a few seconds. Please note the thread is standard MES but the glass bulb on this flashing type is slightly larger than ordinary MES bulbs with a 15mm diameter.

The flashing rate is approximately once per second and the duty cycle is approximately 50/50, though this depends quite a bit on the voltage present in the battery supply at the time.
These were used in model emergency car lamps, the 60’s Dinky ambulance police car etc. and similar applications where a flashing warning light was needed.  If you have constructed the Ladybird Books – “Magnets, Bulbs and Batteries” model lighthouse using a normal bulb, you can simply substitute it for one of these of the appropriate voltage to make it flash.

Non flashing MES and LES bulbs of various voltages plus lamp holders and screw in bases and other fittings also available in our shop.

PLEASE NOTE!

These parts came to us as part of a lot of surplus stock from a large ‘Mispec’ type Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’, they are however pristine, stored with us sealed in original packaging, the photographs are representative of their general condition, being of some of our actual stock, and, as with all our products they come with a full guarantee.

If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
