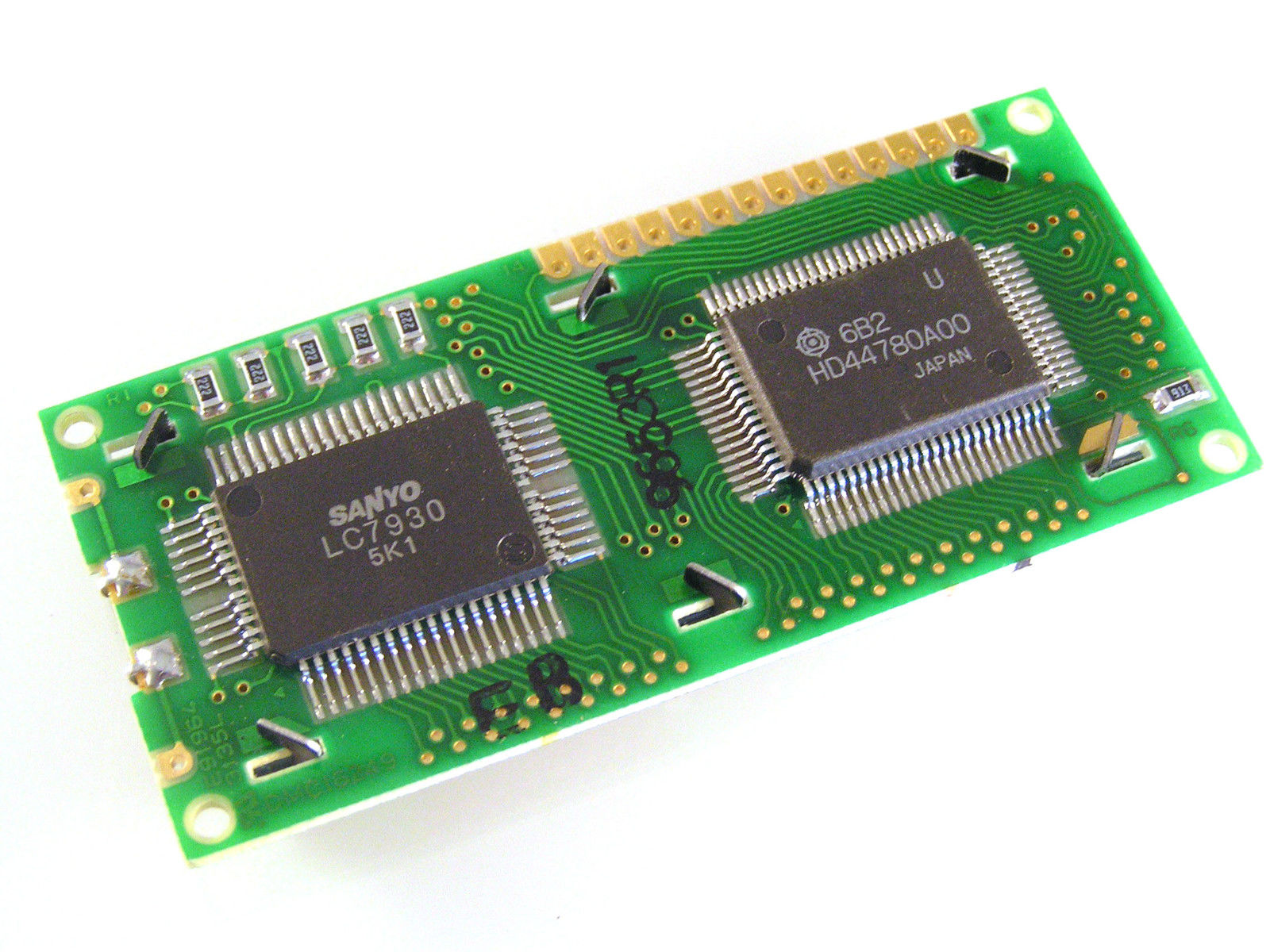

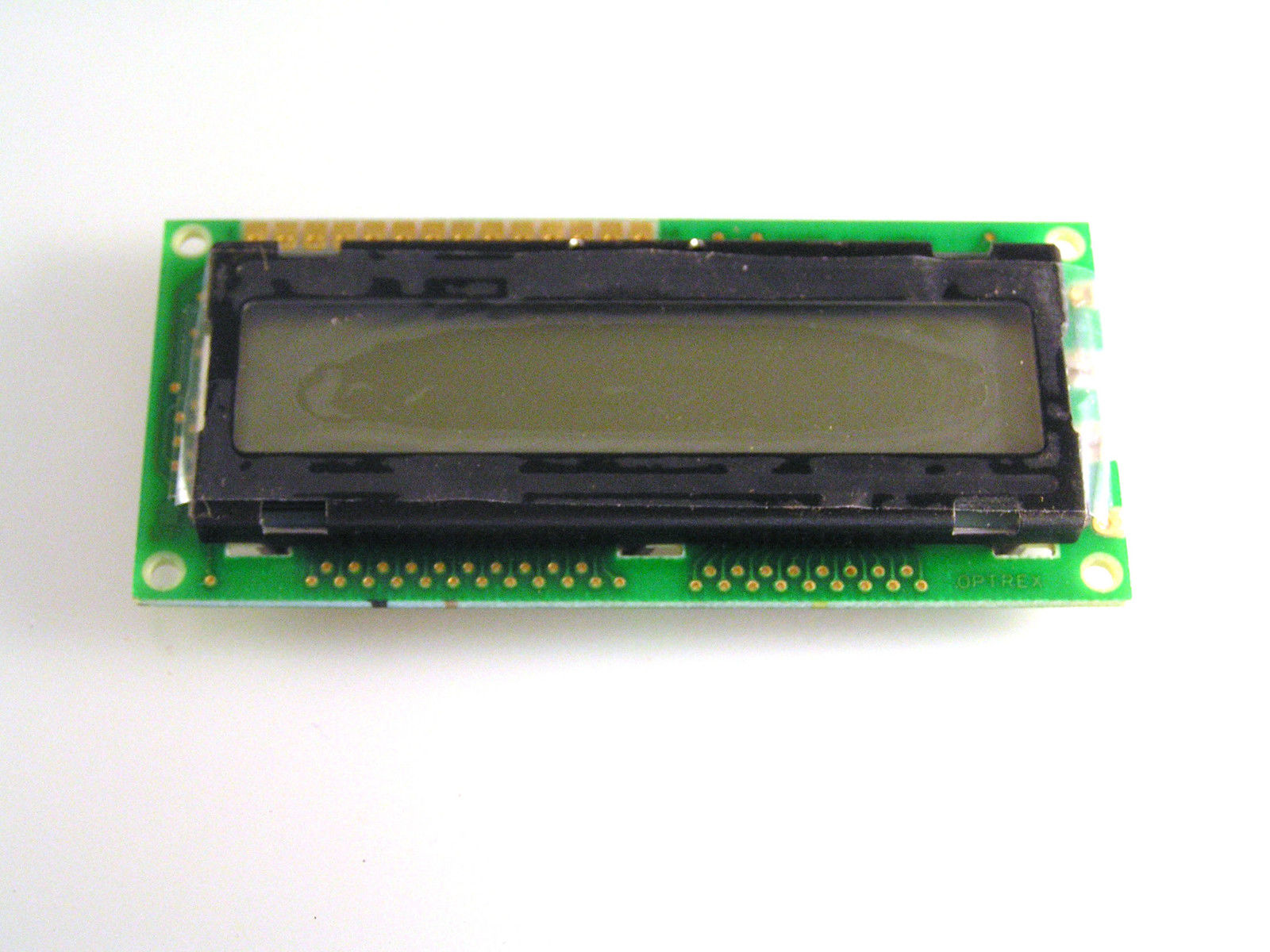

Description
Display is 16 character x 2 lines
Brand new
General Specifications
Operating Temp. ： min. 0℃ ～ max. 50℃
Storage Temp. ： min. -20℃ ～ max. 70℃
Display Format ： 16 characters × 2 lines
Display Fonts ： 5 × 8 dots ( 1 character )
Viewing Area ： 64.5 (W) × 13.8 (H) mm
Outline Dimensions ： 80.0 (W) × 36.0 (H) × 11.0 max. (D) mm
Weight ： 40g max.
LCD Type ： FRD-7202 ( TN / Clear-mode / Reflective )
Viewing Angle ： 12:00
Backlight ： None
Drawings ： Dimensional Outline UE-33528B
There is a mine of info on line on these simply search the part no. DMC16249
OR FOLLOW THESE LINKS –
For schematic diagram copy and paste:- http://media.digikey.com/pdf/Data%20Sheets/Optrex%20PDFs/DMC-16249%20Series%20Drawing.pdf
For full datasheet copy and paste:- http://pdf1.alldatasheet.com/datasheet-pdf/view/91345/OPTREX/DMC16249.html
