Spansion Cypress S29GL512P11TFI01 512Mb 3V Page Mode Flash Memory OT0028A

£10.00

40 in stock

SKU: OT0028A Category:

Description

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

1 Piece

General Description

When it comes to NAND Flash memory devices, the S29GL512P11TFI01 stands out from the crowd with its impressive features and capabilities. Produced by Cypress Semiconductor, this device offers a fast read and program times thanks to its parallel NOR Flash interface, making it perfect for applications where quick data transfer is essential. The integrated Error Correction Code ensures that data remains accurate and reliable, while the Write Protection option adds an extra layer of security against accidental data corruption. With its uniform block architecture and support for JEDAC standard codes, the S29GL512P11TFI01 is a versatile choice for a variety of electronic devices that require high-speed and dependable data storage

S29GL-P Mirror BitTM Flash Family
S29GL512P
512 Megabit 3.0 Volt-only Page Mode Flash Memory featuring
90 nm MirrorBit Process Technology

General Description
These Spansion S29G512P chips are Mirrorbit™ Flash products fabricated on 90 nm process technology. These
devices offer a fast page access time of 25 ns with a corresponding random access time of 110 ns. They feature a Write Buffer
that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time
than standard programming algorithms. This makes these devices ideal for today’s embedded applications that require higher
density, better performance and lower power consumption.

Distinctive Characteristics
Single 3V read/program/erase (2.7-3.6 V)
Enhanced VersatileI/O™ control
– All input levels (address, control, and DQ input levels) and outputs are determined by voltage on VIO input. VIO range is 1.65 to VCC
90 nm MirrorBit process technology
8-word/16-byte page read buffer
32-word/64-byte write buffer reduces overall programming time for multiple-word updates
Secured Silicon Sector region – 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number
– Can be programmed and locked at the factory or by the customer
Uniform 64Kword/128KByte Sector Architecture
– S29GL512P: Five hundred twelve sectors
100,000 erase cycles per sector typical
20-year data retention typical
Offered Packages
– 56-pin TSOP
– 64-ball Fortified BGA
Suspend and Resume commands for Program and Erase operations
Write operation status bits indicate program and erase operation completion
Unlock Bypass Program command to reduce programming time
Support for CFI (Common Flash Interface)
Persistent and Password methods of Advanced Sector Protection
WP#/ACC input
– Accelerates programming time (when VACC is applied) for greater
throughput during system production
– Protects first or last sector regardless of sector protection settings
Hardware reset input (RESET#) resets device
Ready/Busy# output (RY/BY#) detects program or erase cycle completion

For datasheet search…Spansion S29G1512P11TF101

Or go directly to…

https://pdf1.alldatasheet.net/datasheet-pdf/view/207461/SPANSION/S29GL512P11TFI010.html

PLEASE NOTE!

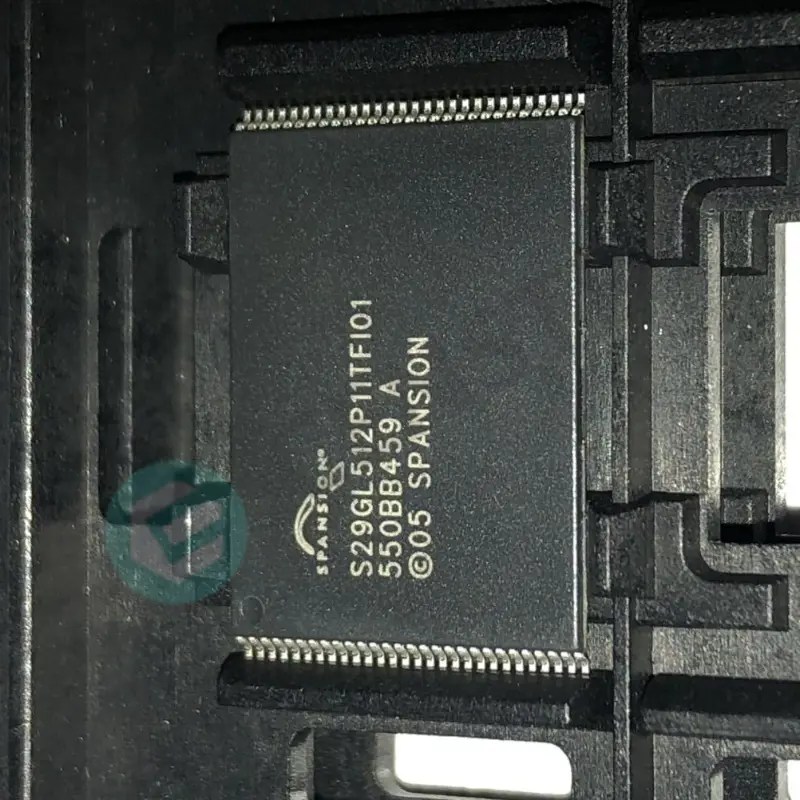

These parts came to us as part of a lot of surplus stock from a large distribution Co. and have been kept in storage for a time, we have therefore classified them as ‘new other’, they are however pristine, stored with us still in their original packaging, the photographs are representative of their excellent condition, being of some of our actual stock, and, as with all our products they come with a full guarantee.

If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
