AB1010 ABS Plastic Electronic Project Box 240x190x90mm Black or White OL0310

Description

WE ARE RICH ELECTRONICS

Ideal for electronic projects.

Product Overview

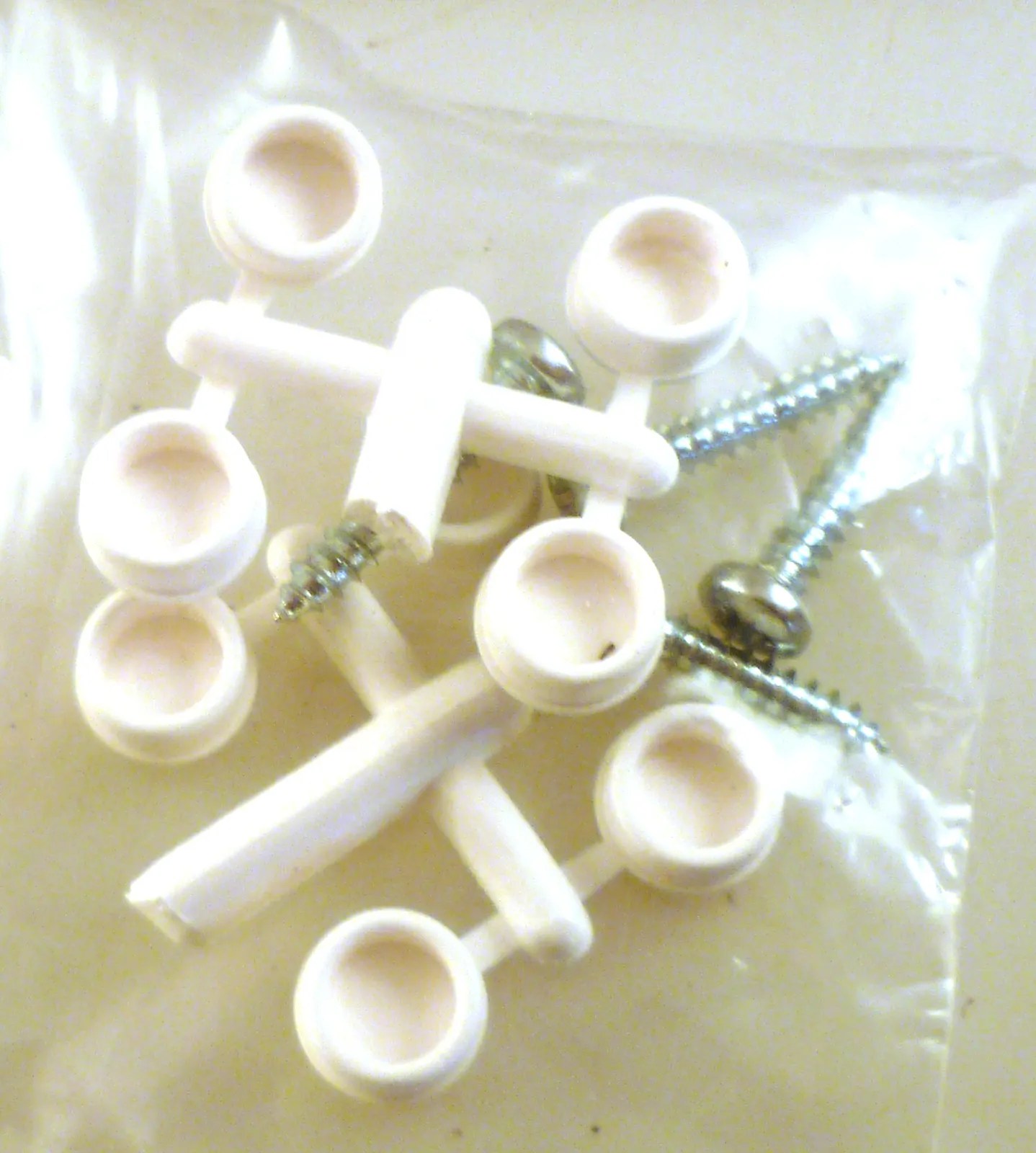

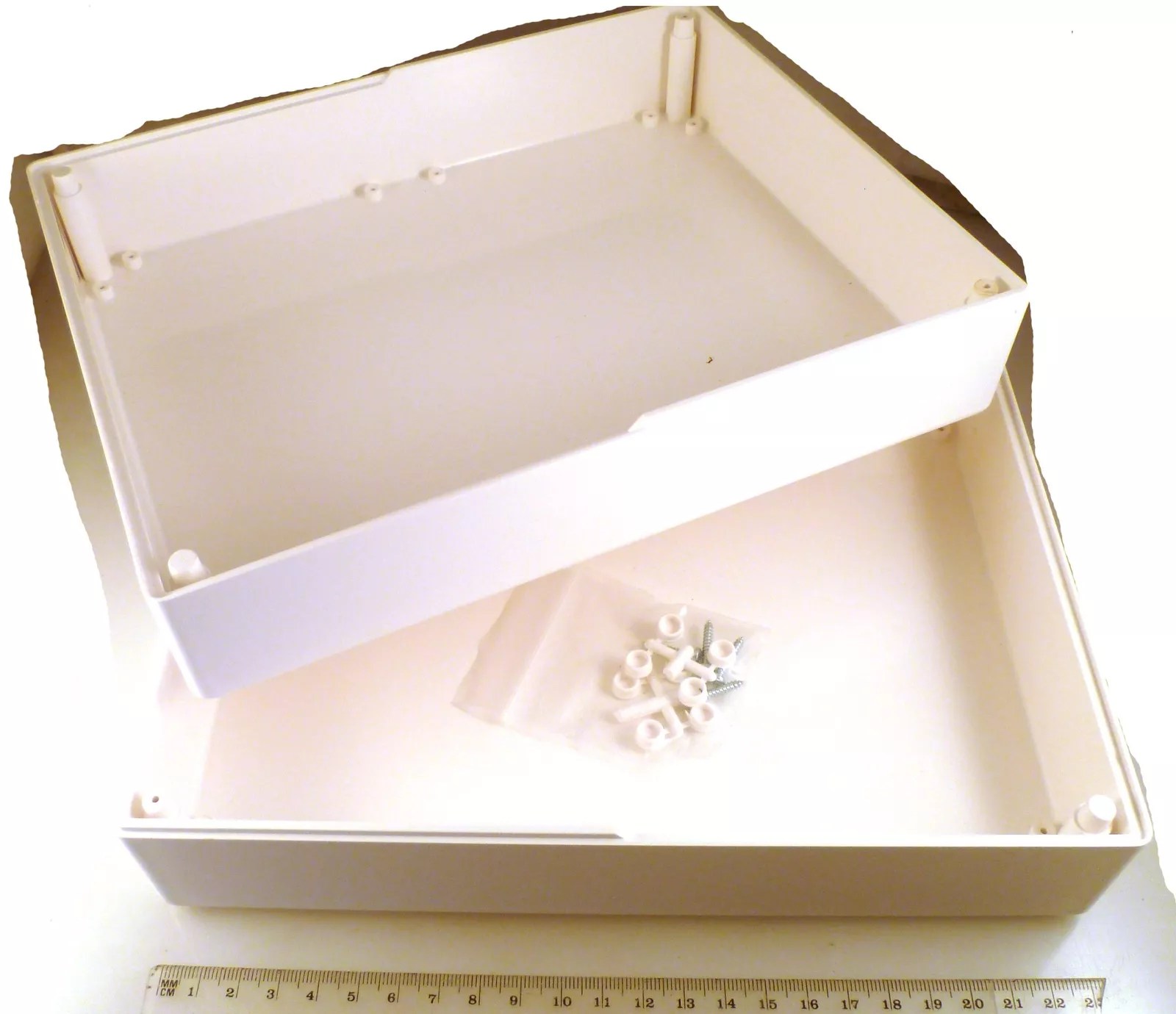

An attractive box in ABS. The rugged yet simple features make it unobtrusive and ideal for commercial, office and domestic applications. The two sections of the box are secured by 4 self-tapping screws which can be inserted from either side and then hidden by the matching plastic covers provided. Vertical PCB slots and integral slots are provided in both halves of the box.

Product Information

Enclosure Type:  Industrial

Enclosure Material:  ABS

External Height:  90mm

External Width:  240mm

External Depth:  190mm

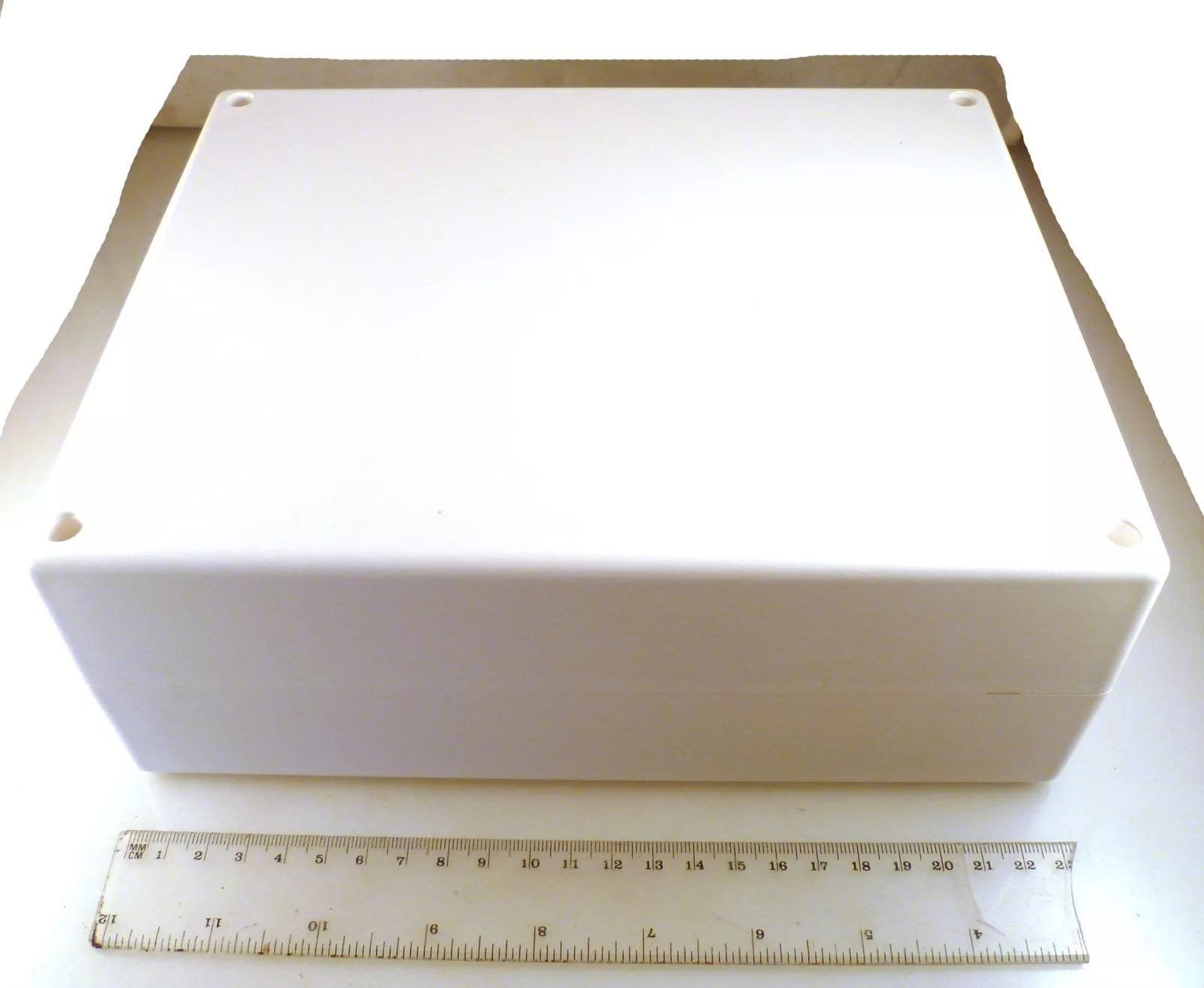

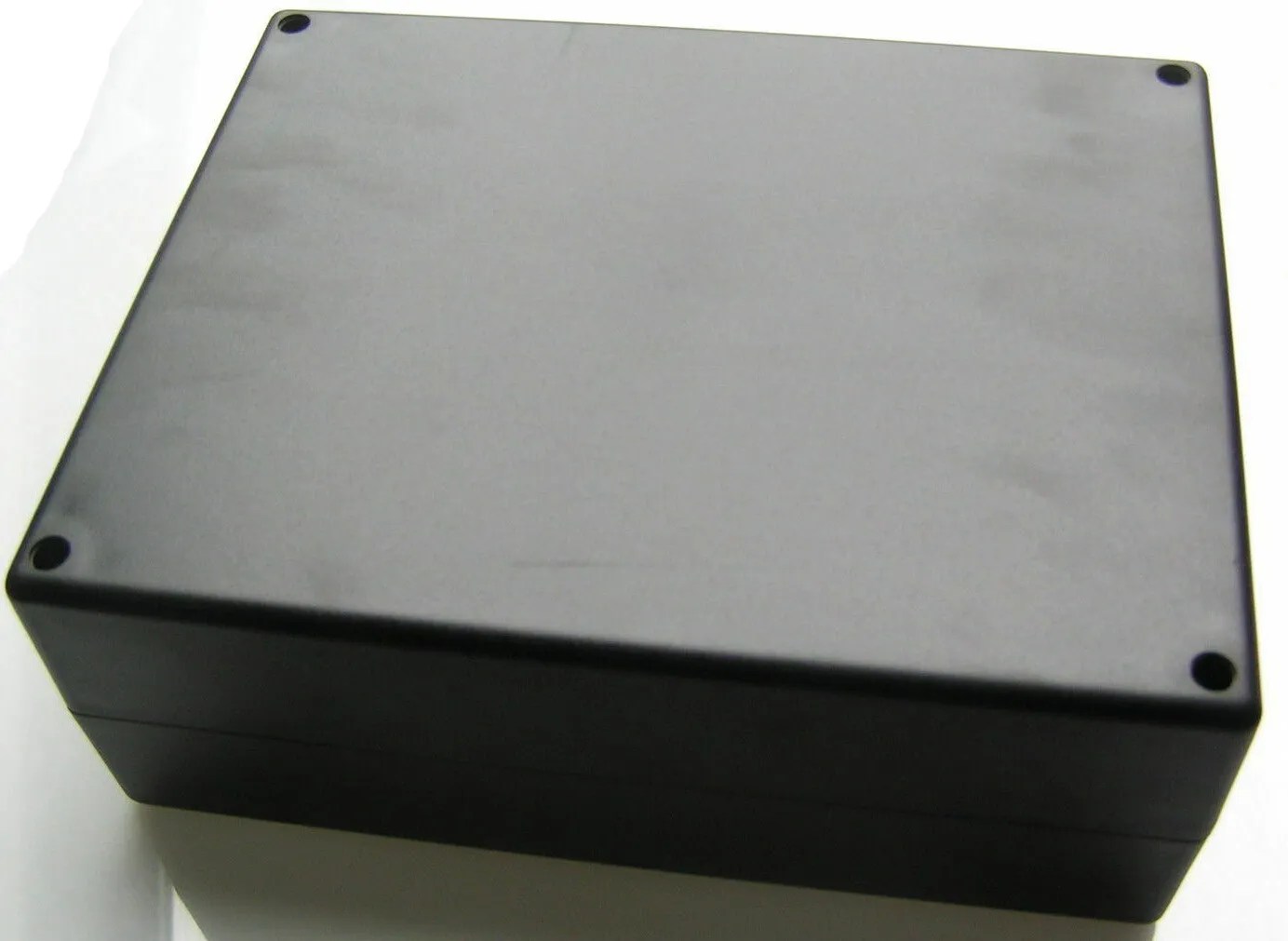

Body Colour:  Black or White

Internal measurements are reduced by the wall thickness of 2mm per wall.

Effective internal space: : 236mm long x 186mm wide x 86mm high.

Less the space taken up by the 4 fixing columns which receive the fixing screws in each corner.

This can be obtained by measuring 13mm along the diagonal from each of  the 4 internal corners.

MADE IN THE UK!

PLEASE NOTE!

These enclosures are new but have been kept in storage for a time, they are however pristine, stored with us still in their original packaging, the photographs are representative of their excellent condition being of some of our actual stock, and, as with all our products they come with a full guarantee.

If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
